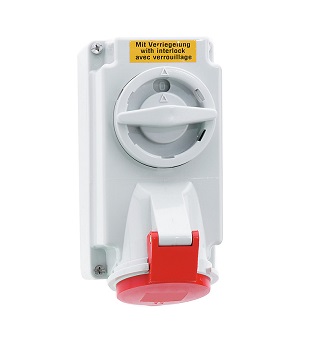

Surface Mounting Switched Socket, Interlocked IP44, 4 Pin, 63Amp
Surface Mounting Switched Socket Interlocked IP-44: 63 Amp 4 Pin
SKU: 16605
Description:
| # | Description | Detail |
|---|---|---|
| 1 | NEPTUNE BALS No | 16605 |
| 2 | EAN/pcs | 4024941166058 |
| 3 | Amperage | 63A |
| 4 | Poles | 4p (3P+PE) |
| 5 | Earth ‘Clock’ Position | 6 h |
| 6 | Voltage | 380 up to 415V |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP44 |
| 9 | Full Description | |
| 10 | Membership | Quick-Connect |
| 11 | Connection design | screw terminal as box terminal with Kontex-contact |
| 12 | Cable entry | top entry M40 bottom entry M40/M32 |
| 13 | Max. conductor | 25.0 mm² |
| 14 | Packaging | 260×160 mm (HxW) |
