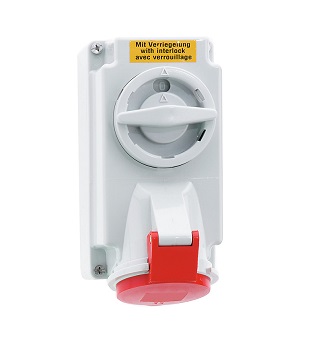

Surface Mounting Switched Socket, Interlocked IP44, 4 Pin, 16Amp
Surface Mounting Switched Socket Interlocked IP-44: 16/20 Amp 4 Pin
SKU: 1610
Description:
| # | Description | Detail |
|---|---|---|
| 1 | NEPTUNE BALS No | 1610 |
| 2 | EAN/pcs | 4024941016100 |
| 3 | Amperage | 16A |
| 4 | Poles | 4p (3P+PE) |
| 5 | Earth ‘Clock’ Position | 6 h |
| 6 | Voltage | 380 up to 415V |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP44 |
| 9 | Full Description | |
| 10 | Membership | Quick-Connect |
| 11 | Connection design | screwless spring terminals as cage clamp with Kontext-contact |
| 12 | Cable entry | top entry M20 bottom entry M25/20 |
| 13 | Max. conductor | 4.0 mm² |
| 14 | Packaging | 170×90 mm (HxW) |
