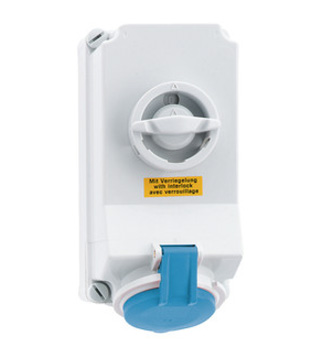

Surface Mounting Switched Socket, Interlocked IP44, 3 Pin, 32Amp
Surface Mounting Switched Socket Interlocked IP-44: 32 Amp 3 Pin
SKU: 16097
Description:
| # | Description | Detail |
|---|---|---|
| 1 | NEPTUNE BALS No | 16097 |
| 2 | EAN/pcs | 4024941160971 |
| 3 | Amperage | 32A |
| 4 | Poles | 3p (2P+PE) |
| 5 | Earth ‘Clock’ Position | 6 h |
| 6 | Voltage | 3p (2P+PE) |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP44 |
| 9 | Full Description | |
| 10 | Membership | Quick-Connect |
| 11 | Connection design | screwless spring terminals as cage clamp with Kontext-contact |
| 12 | Cable entry | top entry M25/M25 bottom entry M25 |
| 13 | Max. conductor | 10.0 mm² |
| 14 | Packaging | 225 x 118 mm (HxW) |
