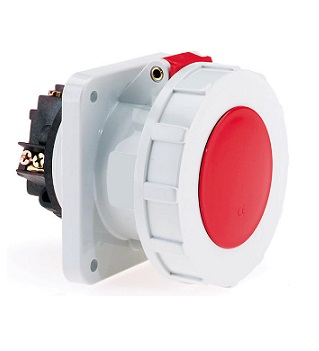

Panel Mounting Socket Outlet Straight IP67 5 Pin 63Amp
Panel Mounting Socket Outlet straight Water Tight IP-67: 63 Amp 5 Pin
SKU: 13104
Description:
| # | Description | Detail |
|---|---|---|
| 1 | NEPTUNE BALS No | 13104 |
| 2 | EAN/pcs | 4024941131049 |
| 3 | Amperage | 63A |
| 4 | Poles | 5p (3p+N+PE) |
| 5 | Earth ‘Clock’ Position | 6 h |
| 6 | Voltage | 200/346 up to 240/415V |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP67 |
| 9 | Full Description | |
| 10 | Membership | screw terminal |
| 11 | Connection design | screw terminal as box terminal with Kontex-contact |
| 12 | Max. conductor | 25.0 mm² |
| 13 | Fixing centres | flange 107×100 mm (HxW), fixing centres 85×77 mm (HxW) |
