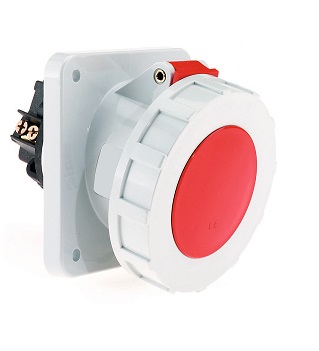

Panel Mounting Socket Outlet Angled IP67 4 Pin 125Amp+6
Panel Mounting Socket Outlet angled Water Tight IP-67: 125 Amp 4 Pin
SKU: 12104
Description:
| # | Description | Detail |
|---|---|---|
| 1 | NEPTUNE BALS No | 12104 |
| 2 | EAN/pcs | 4024941121040 |
| 3 | Amperage | 125A |
| 4 | Poles | 4p (3P+PE) |
| 5 | Earth ‘Clock’ Position | 6 h |
| 6 | Voltage | 380 up to 415V |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP67 |
| 9 | Full Description | |
| 10 | Membership | screw terminal TE |
| 11 | Connection design | screw terminal as box terminal with Kontex-contact |
| 12 | Max. conductor | 70.0 mm² |
| 13 | Fixing centres | flange 114×114 mm, fixing centres 90×90 mm |
