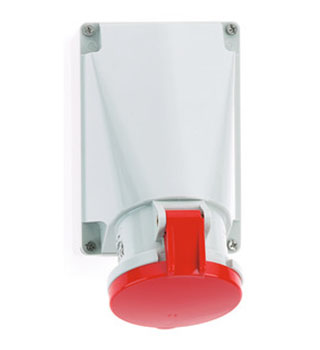

Socket Outlet (IP-44): 63 Amp 4 Pin
Surface Mounting Socket Outlet IP44
SKU: 1127
Description:
| # | Description | Details |
|---|---|---|
| 1 | NEPTUNE BALS No | 1127 |
| 2 | EAN/pcs | 4024941011273 |
| 3 | Amperage | 63A |
| 4 | Poles | 4P (3P+PE) |
| 5 | Earth ‘Clock’ Position | 6h |
| 6 | Voltage | 380 up to 415V |
| 7 | Frequency | 50 and 60Hz |
| 8 | Protection | IP44 |
| 9 | Membership | Screw terminal |
| 10 | Connection design | Screw terminal as box terminal with Kontex-contact |
| 11 | Cable entry | Top entry M40, bottom entry M32 |
| 12 | Max. conductor | 25.0 mm² |
| 13 | Packaging | 170×118 mm (HxW) |
| 14 | Description | Surface Mounting Socket Outlet |
