FEATURES
- Unique & Compact Design
- Screw Less, quick & Easy Assembly of contact block
- IP 65 product (After mounting on panel)
- Inbuilt LVGP (Low Voltage Glow Protection)
- Pass surge test 2kV & HV test of 1.5kV
- Stackable design of contact block
- Snap mounting with contact block EC1C & EC2C
- Assembled with Gen-Next LED holder
| Test Parameters | Specification |
|---|---|

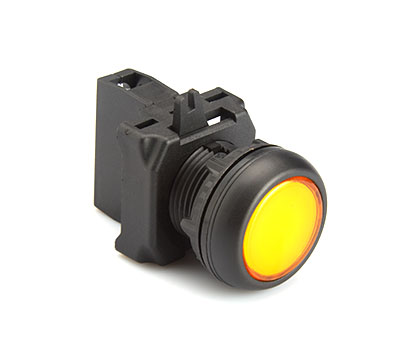

| Product | Gen Next LED Actuators |

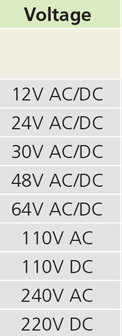

| Rated Voltage |
12 V AC/DC, 24 V AC/DC, 30 V AC/DC, 48 V AC/DC, |
| Operating Voltage | -20% to +10% of rated voltage |
| Type of LED | Side View SMD LEDs |

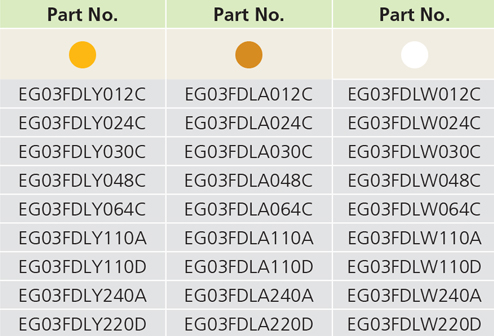

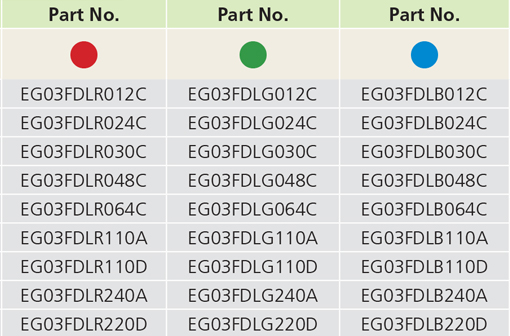

| Available Colours | Red / Green / Yellow / Amber / Blue / White |
| Life / Warranty | 0.1 Million burning hours / 24 Months (At standard operating conditions) |
| Operating Frequency | 50 / 60 Hz |
| Operating Temperature | -25°C to 65°C |
| Storage Temperature | -30°C to 70°C |
| Wire Termination Capacity | 0.5 mm², 1.5 - 2.5 mm² |
| Terminal Torque | 0.8 Nm |
| Low Voltage Glow Protection | Available |
| Surge Test | 2kV |
| HV Test for 60 sec. | 1.5kV |
| Degree of Protection | Above Panel: IP65, For Terminals: IP20 |
| International Approvals | CE, UL |
